Side Lighting Transparent LED Display

$500 USD excl. shipping

Quantity

✦ See-Through LED · Floating Content Effect · Glass Façades

Turn any glass surface into a living media wall — without blocking daylight. LEDs mounted sideways on ultra-slim louvers create a stunning "floating content" effect. Up to 90% transparency. Available in P3.91 to P15.625 pixel pitch.

🪟 Up to 90% Transparency ☀️ 5,000 cd/m² Brightness ⚖️ Only 10 kg/m² 🔄 Up to 3,840Hz 🔀 Curved & Custom Shapes

🪟 What Is a Side Lighting Transparent LED Display?

Unlike standard LED screens, this display mounts its LEDs sideways on ultra-slim aluminium louver strips, so ambient light and sightlines pass freely through the open gaps while the emitted LED light forms vivid content. The result is a "floating content" effect — video and graphics appear suspended in glass, keeping the space behind fully bright and open. By day it is clean and elegant. By night it becomes a signature luminous façade, a retail window or a creative architectural statement.

✨ Key Features

🪟 Up to 90% Transparency Minimum ≥85% light transmittance — up to ~90% on certain models. Natural daylight passes through freely. Interiors stay bright, open and visible. No more choosing between advertising and openness.	✦ Floating Content Effect on Glass Side-emitting LEDs on slim louvers make content appear to float against the glass. Videos, graphics and animations seem suspended in air — a premium, modern aesthetic that no opaque screen can replicate.
⚖️ Ultra-Lightweight — 10 kg/m² Slim aluminium profile construction at only ~10 kg/m². Dramatically reduces structural load on glass façades — less steelwork, lower keel requirements and significantly reduced project cost versus conventional LED cabinets.	🔀 Curvable & Custom Shapes Flexible modules support concave and convex curves, arcs, rings, sky domes and irregular glass configurations. Standard 1000×500mm panels mix to create any custom screen shape or size.
🔧 Front Access — Fast Maintenance Modular 1000×500mm panels with front-access service design. Modules replaced quickly from the safe side — no scaffolding or rear access required. Minimises downtime and labour for high-rise or façade installations.	☀️ 5,000 cd/m² — Day & Night Readable High 5,000 cd/m² brightness ensures vivid visibility in direct sunlight. 16-bit grayscale and up to 3,840Hz refresh rate deliver smooth, flicker-free motion for camera shooting and live broadcast scenarios.
🎯 Multiple Pixel Pitches Available P3.91–7.8 for close-range retail detail. P7.8 for balanced mid-range façades. P10.42 for larger commercial buildings. P15.625 for landmark walls and long-distance viewing — match pitch to your screen size and viewer distance.	⏳ 100,000-Hour Lifespan Rated for ≥100,000 hours of service life. MTBF >10,000 hours. Built on proven SMD3512 side-emitting LEDs with ICN2038 driver ICs — long-term reliability for permanent architectural installations.

🎯 Choose Your Pixel Pitch

Model	Pixel Pitch	Min. Distance	Best Application
P3-7	3.91 – 7.8 mm	≥ 5 m	Premium retail windows, luxury showrooms, close-viewer storefronts
P7-7	7.8 mm	≥ 5 m	Glass curtain walls, commercial façades, bars, KTV venues, mid-range buildings
P10-10	10.42 mm	≥ 5 m	Landmark buildings, large-area façades, observation elevators, sky rings
P15-15	15.625 mm	≥ 5 m	Very large façades, long viewing distance (50m+), cost-efficient giant walls

💡 Not sure which model fits your project? Share your glass dimensions, viewing distance and building type — we will recommend the right pitch and estimate screen cost via WhatsApp within 2 hours.

📋 Technical Specifications

Specification	P3-7	P7-7	P10-10	P15-15
Pixel Pitch	3.91–7.8mm	7.8mm	10.42mm	15.625mm
LED Type	SMD3512 Side-Emitting
Driver IC	ICN2038
Drive Mode	1/4 scan	1/8 scan	1/2 scan	Static
Pixel Density	32,768/m²	16,384/m²	9,216/m²	4,096/m²
Cabinet Size	1000 × 500 mm
Cabinet Resolution	256×64	128×64	96×48	64×32
Transparency	≥ 85% (up to ~90%)
Brightness	5,000 cd/m²
Refresh Rate	>1920Hz	>1920Hz	>1920Hz	3840Hz
Frame Rate	60 fps
Grayscale	16-bit
Viewing Angle	H: 140° / V: 140°
Min. Viewing Distance	≥ 5 m
Weight	~10 kg/m²
Cabinet Material	Aluminium extruded profile
Power (Max/Avg)	~689 W/m² max · ~235 W/m² average
Input Voltage	AC 86–264V / 60Hz (universal)
Operating Temp.	-20°C to +60°C (extended: -40°C to +60°C)
Humidity	10% – 85% RH
IP Rating	IP30 standard · outdoor weatherproofing configured per project
MTBF	> 10,000 hours
Service Life	≥ 100,000 hours

📍 Where It Works Best

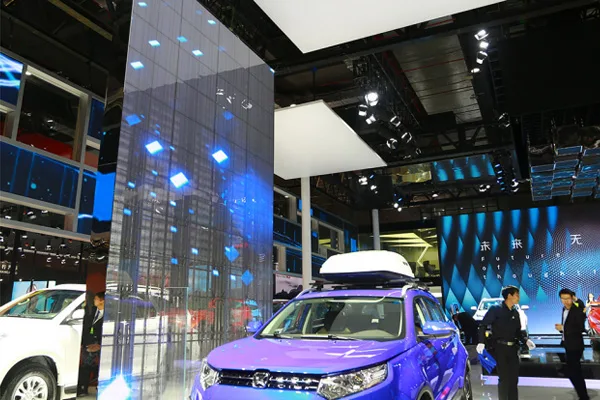

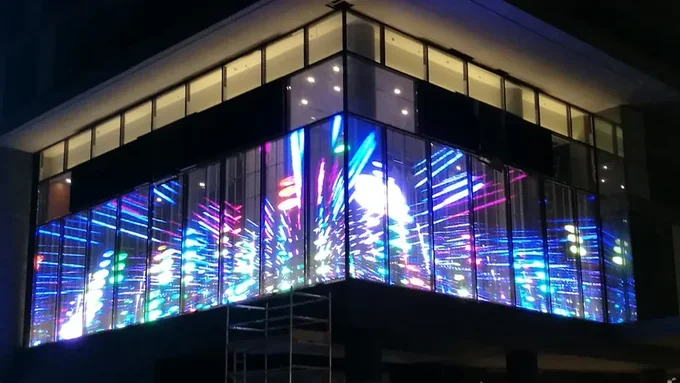

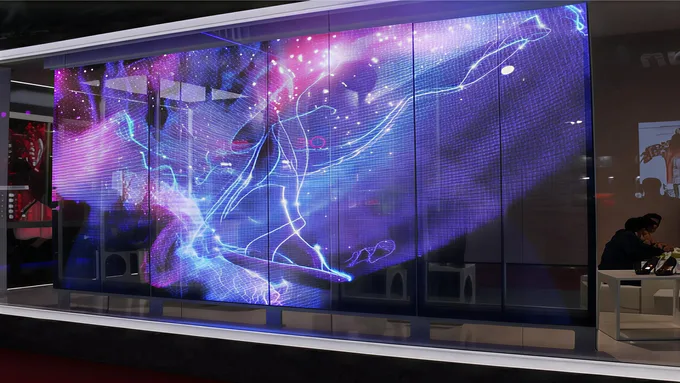

🏢 Glass Curtain Walls & Façades Landmark office buildings, mixed-use towers, cultural centres — media on glass without darkening the interior	🏪 Retail Windows & Showrooms High-street shopfronts, luxury retail, car showrooms — brand content on the window while products remain visible inside	🎶 Bars, KTV & Entertainment High-energy visual backdrops and partition walls — immersive atmosphere without blocking sightlines or light
🛗 Scenic Elevators & Sky Rings Observation lifts, sky domes, rooftop rings — curved glass display applications where content and views coexist	🏙️ City Landmarks & Public Spaces Airports, metro stations, civic buildings, plazas — architectural media that enhances rather than obstructs	🔷 Irregular & Curved Glass Custom curved façades, arches, cylinders and complex shapes where traditional rigid cabinets cannot fit

❓ Frequently Asked Questions

What makes side-lighting different from regular transparent LED?

Standard transparent LEDs face forward. Side-lighting mounts LEDs sideways on slim louver strips — light travels through the open gaps so the content appears to float on glass. The result is a much cleaner, more open look with higher achievable transparency.

Will it block daylight inside my building?

No. Transparency is ≥85% — up to ~90% depending on model. Natural daylight passes freely through the open gaps. Interior spaces remain bright and sightlines stay open. This is the key reason architects specify side-emitting transparent LED for glass curtain walls.

Which pixel pitch should I choose?

P3-7 (3.91mm) for premium retail close-viewing. P7-7 for most commercial building façades. P10-10 for larger public and landmark projects. P15-15 for very large screens viewed from 50m+. Tell us your minimum viewer distance and screen dimensions — we'll confirm the right model.

Is it suitable for camera and broadcast use?

Yes. 16-bit grayscale, 60fps frame rate and up to 3,840Hz refresh (P15-15 model) minimise flicker and banding when captured by cameras. Suitable for broadcast backdrops, live streaming and professional video production environments.

How is it maintained at height on a façade?

Modular 1000×500mm panels with front-access design allow technicians to replace any module from the safe front side — no rear access or heavy scaffolding required. Individual modules are swapped in minutes, keeping façade downtime minimal.

Is it truly weatherproof outdoors?

The standard configuration is IP30. For projects with direct rain exposure, an outdoor weatherproofing package is configured per-project. Operating range is -20°C to +60°C (extended -40°C to +60°C available). Contact us with your installation environment details for the correct protection specification.

🏭 Factory Direct — Custom Sizes Available

All panels factory tested before dispatch. Custom screen shapes, curves and OEM available. Worldwide shipping. Reply on WhatsApp within 2 hours with your screen size, building type and viewing distance.

✅ ≥85% Transparency ✅ Side-Emitting SMD3512 ✅ Up to 3,840Hz Refresh ✅ 16-bit Grayscale ✅ 5,000 cd/m² Brightness ✅ 10 kg/m² Lightweight ✅ 100,000h Service Life ✅ Curved & Custom Shapes ✅ Front Access Maintenance ✅ OEM / Custom Available
